Dome Fiber Optic Splice Closures Fiber Joint Closures
FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.
Trunk cable connecting
Prospecting or military communication

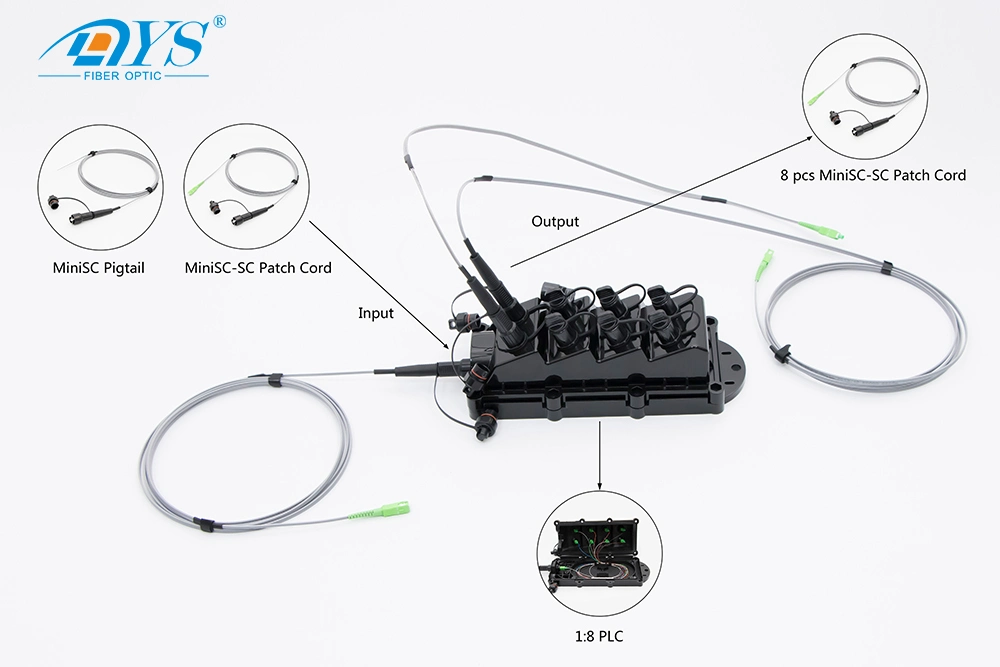

High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
Factory-sealed or field assembly.
IP68 water and dust protection
Strong enough: working under 1200N pulling force long term.
From 2 to 12 ports for single or multifiber harsh connectors.
Available with PLC or splice sleeve for fiber divide .
IP68 waterproof rating.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.
Meet IEC 61753-1 standard.
Cost effective: save 40% operating time.
|Cable Strength Member||Armoured or Non-armoured|
|Cable Type||Hybrid or non-hybrid|
|Round Cable OD||5.0mm to 14.0mm|
|Flat Cable Dimension||4.6x8.9mm|
|Cable Jacket Material||LSZH,PE or TPU|
|Cable Crush Resistance||200N/cm long term|
|Tensile Strength||1200N long term|
|UV Resistance||ISO 4892-3|
|Fire Protection Rating||UL94-V0|
|Number of PLC||1to 2pcs|
|Number of Fusion Protection Steeve||1to 24pcs|
|Input Hole||PG13.5||MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized|
|Output Hole||MINI SC,H connector||MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized|
|Extend Hole||Closed||MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized|
